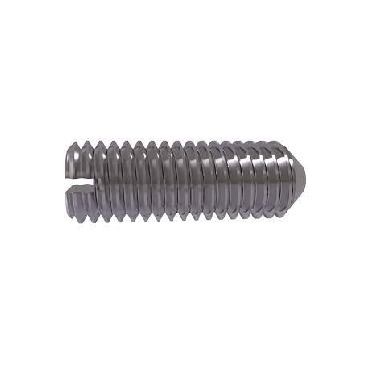

SS Slotted Set Screw with cone Point

Get a Price/Quote

MOQ : 500 Pieces

SS Slotted Set Screw with cone Point Specification

Corrosion Protection
Yes, as per finish

Surface Treatment
Case Hardened, Passivated, Oiled

Material
Alloy Steel, Stainless Steel, Brass

Type
Slotted Set Screw with Cone Point

Head Shape Type
Headless, Slotted Drive

Head Size
1.6 mm to 12 mm

Screw Size
M2 to M12 (Metric), #2-56 to 1/2 (Inch)

Finish
Plain, Zinc Plated, Black Oxide

Point Style
Cone Point

Tensile Strength
Min. 22-35 HRC (depends on material)

RoHS Compliance
Yes

Length Range
3 mm to 100 mm

Temperature Resistance
Up to 400C (material dependent)

Custom Sizes
Available on request

Thread Tolerance
6g (Metric)

Reusable
Yes (if not deformed upon use)

Standard Packaging
100/box, bulk available

Drive Type
Slotted

Thread Type
Metric and UNC/UNF Threads

Application
For permanent or semi-permanent fastening where precise point force is required

SS Slotted Set Screw with cone Point Trade Information

Minimum Order Quantity
500 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SS Slotted Set Screw with cone Point

Also available in below materials.

SS 316
SS316L
SS304
SS410
SS420
Dupelx 2205
Super Duplex 2205
Hastelloy-C
Inconel 625
Inconel 718
MONEL 400
MONEL K-500
Alloy 20
Titanium

Jump on our Slotted Set Screw with Cone Point at a reduced price-crafted for those seeking a customizable, optimum solution in permanent fastening. Engineered from gilt-edged alloy steel, stainless steel, or brass, with breathtaking finishes such as zinc plated and black oxide, this headless screw ensures precise point force. Select from metric or UNC/UNF threads, tailored in lengths from 3 mm to 100 mm and sizes M2 to M12. RoHS compliant, ISO-standard, and designed for both durability and peak performance, these screws deliver reliability in every box.

Targeted Performance for Demanding Applications

Designed specifically for applications demanding precise point force, the slotted set screw with cone point reliably secures components without protrusion. Its headless, slotted drive suits confined surfaces in mechanical assemblies, instruments, or connecting shafts. The point style provides a secure hold, preventing movement and ensuring optimum stability. Customizable in size and finish, these screws offer a gilt-edged advantage in corrosion protection, tensile strength, and adaptability, making them the preferred choice for industry professionals.

Exceptional Supply & Fast Dispatch Guarantee

With stock ready and available for immediate dispatching, we guarantee fast delivery on our slotted set screws with cone point. Bulk supply and standard packaging (100/box) are complemented by sample availability to aid your selection. Orders are typically delivered swiftly across India and beyond, with custom requests accommodated promptly. Whether you are sourcing for large-scale manufacturing or urgent maintenance, our streamlined supply process ensures you receive your fastening solution without delay.

FAQ's of Slotted Set Screw with cone Point:

Q: How does the cone point design benefit my application?

A: The cone point design concentrates force precisely, making it ideal for permanent or semi-permanent fastening where secure placement and minimal surface distortion are required.

Q: What thread types and tolerances are available for these set screws?

A: Our slotted set screws with cone point are available in metric (6g tolerance) and UNC/UNF threads, ranging in sizes from M2 to M12 (metric) and #2-56 to 1/2 inch (inch series).

Q: Where can these screws be used most effectively?

A: These screws are best used in applications requiring precise alignment or securement, such as in machinery, instruments, assemblies, and anywhere a strong, headless fastener is preferred.

Q: What materials and finishes can I customize for my needs?

A: You can choose from alloy steel, stainless steel, or brass, with finishes including plain, zinc plated, or black oxide, tailored to your corrosion protection and strength requirements.

Q: How quickly can I receive my order after dispatching?

A: With stock ready and efficient dispatching processes, most orders are delivered within a few business days, depending on your location and order size.
